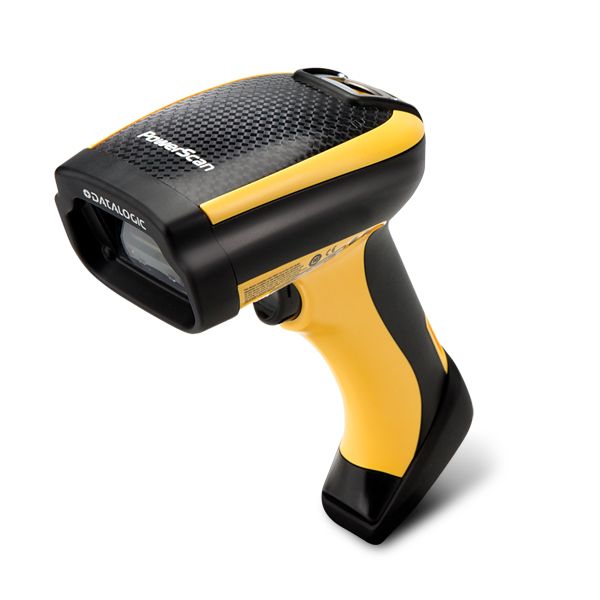

Datalogic PowerScan 9501 Handheld bar code reader 1D/2D Laser Black, Yellow

SKU
PBT9501-DPMRB
£699.86
In stock
PowerScan PBT9501, Bluetooth, Fixed Direct Part Marking EVO, Removable Battery
The PowerScan™ 9501 2D area imagers combine omnidirectional reading capabilities with outstanding optical characteristics, resulting in a scanner that is able to read any kind of bar code, regardless of orientation!

The PowerScan family of bar code readers are the ultimate industrial hand held scanners designed and constructed to withstand the toughest environmental conditions.

The PowerScan PD9531 imager is the corded version of the new series. The 9501 cordless area imagers are comprised of the PBT9501 / PM9501 imagers. The PBT9501 features Bluetooth® wireless technology and the PM9501 features Datalogic’s STAR Cordless System™ narrow band radio.

The PowerScan 9501 imagers have an ergonomic shape with well-balanced weight and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement. Additionally, the PowerScan 9501 area imagers use a soft-pulsed white illumination light resulting in reduced flashes, which is much gentler on the eyes during scan-intensive operations.

The 9501 area imagers also feature Datalogic’s exclusive 3 Green Lights (3GL™) for superior good-read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, Keyboard Wedge, USB and offer an optional Ethernet for standard or industrial uses.

The PowerScan 9501 imagers introduce a new technology with the ‘Liquid Lens’ feature which increases the depth of field and allows the reading of standard, wide and high density bar codes. Datalogic’s Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (hand held or presentation scanning).
SKU PBT9501-DPMRB
Specification
Scanning
TypeHandheld bar code reader
Linear (1D) barcodes supportedGS1 DataBar
2D (matrix & stacked) barcodes supportedAztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code
Yaw reading angle-40 - 40°
Working distance9 cm
Tilt reading angle0 - 360°
Sensor typeLaser
Scanner type1D/2D
Pitch reading angle-40 - 40°
Light levels (direct sunlight)0 - 100000 lx
Ports & interfaces
Connectivity technologyWired & Wireless
USB version2.0
Bluetooth version3.0
Operating frequency2400 - 2480 MHz
Standard interfacesBluetooth, USB
Performance
Protection featuresShock resistant
Keys quantity4 keys
Housing materialPlastic
International Protection (IP) codeIP65
Product colourBlack, Yellow
CertificationR.E.A.C.H.
BuzzerYes
Light levels (direct sunlight)0 - 100000 lx
Design
TypeHandheld bar code reader
Protection featuresShock resistant
Keys quantity4 keys
Housing materialPlastic
International Protection (IP) codeIP65
Product colourBlack, Yellow
CertificationR.E.A.C.H.
Power
Power consumption500 mA
Power source typeBattery, DC
Power consumption (typical)8 W
Battery life4.5 h
Number of reads per charge60000
Input voltage10 V
Battery typeBuilt-in battery
Battery technologyLithium-Ion (Li-Ion)
Battery capacity3350 mAh
Weight & dimensions
Width212 mm
Depth110 mm
Height74 mm
Weight380 g
Technical details
TypeHandheld bar code reader
Protection featuresShock resistant
Keys quantity4 keys
Housing materialPlastic
International Protection (IP) codeIP65
Product colourBlack, Yellow
CertificationR.E.A.C.H.
BuzzerYes
Harmonized System (HS) code84716070
Compliance certificatesRoHS
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)-20 - 50 °C
Light levels (direct sunlight)0 - 100000 lx
Logistics data
Harmonized System (HS) code84716070
Manufacturer Datalogic
In Stock Y
Your Rating
Batteries, Cables & Power supplies are not always included, so please check with us before you make a purchase if you are unsure what is included.
